Laser Distance Sensors

The digital laser sensors of the AXIS and HG-C series measure the distance or the position of an object in a highly reliable, non-contact and wear-free manner according to the triangulation principle. The integrated microcontroller calculates the laser light intensity by color field correction and by the reflectance and adapts this to the object properties, such as for example color, roughness, reflectance or translucency. Glossy metals are just as easily measurable as matt, dark materials (rubber, plastic).

The sensor models AXIS-MI achieve a resolution of up to 1 μm and offer an excellent price-performance ratio - ideal for OEM applications. For demanding applications, the "High Performance"-model recommends itself with a resolution of 0.7 μm and higher accuracy. The output signal can be configured as RS485 as well as analog voltage and current signal like 0 ... 10 V or 4 ... 20 mA.

Key Features:

Excellent cost-benefit ratio
Measuring ranges from 10 mm - 13 m
High-resolution up to 0,7 μm
Material-independent measuring

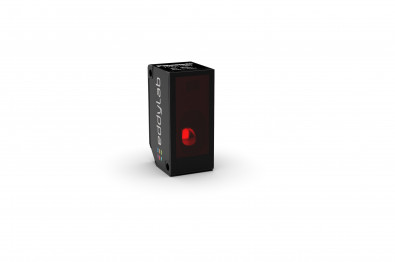

Miniature sensors HG-C

Ranges	10 - 400 mm
Repeatability	10 - 800 μm
Linearity	±0,1 %...± 0,3 %
Output	0...5V / 4...20mA
Protection class	IP 67
Download	Data sheet CAD-data (on request)

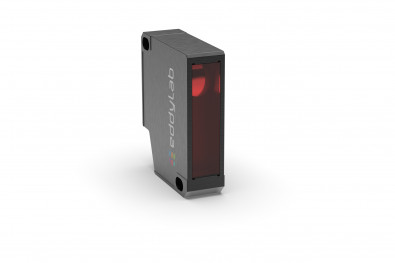

Miniature sensors AXIS-MI-10/104

Very small laser triangulation sensors with integrated electronics

Ranges	10 - 104 mm
Resolution	1 - 35 µm
Linearity	± 0,08% MR...± 0,16 % MR
Output	0...10 V / 4...20 mA / RS485
Protection class	IP67
Download	Data sheet CAD-data (on request)

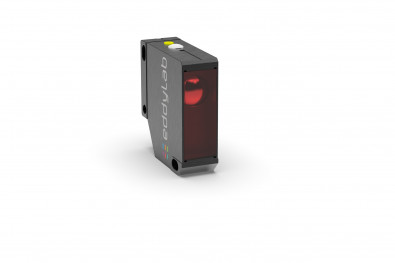

Miniature sensors AXIS-MI-50/300/500

Miniature sensors for measuring ranges up to 500 mm

Ranges	50/300/500 mm
Resolution	1 - 160 µm
Linearity	≤ 0,23% MR
Output	0...10 V / 4...20 mA / RS485
Protection class	IP67
Download	Data sheet CAD-data (on request)

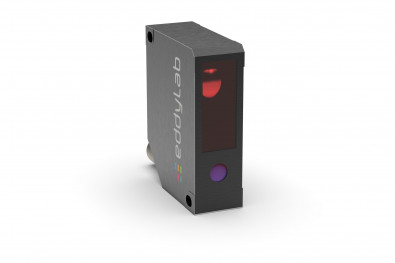

Performance sensors AXIS-P

Perfomance laser sensors - powerful sensors for factory automation

Ranges	40 - 500 mm
Resolution	4 - 670 µm
Linearity	± 0,15% MR...± 0,40 % MR
Output	0...10 V / 4...20 mA
Protection class	IP67
Download	Data sheet CAD-data (on request)

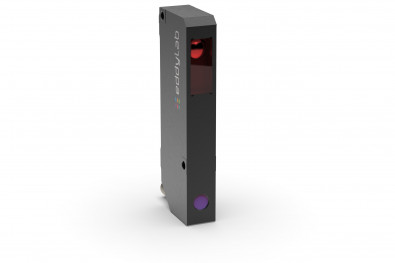

Performance sensors AXIS-P800

Perfomance laser sensors - powerful sensors for factory automation

Ranges	800 mm
Resolution	20...400 µm
Linearity	± 0,21% MR
Output	0...10 V / 4...20 mA
Protection class	IP67
Download	Data sheet CAD-data (on request)

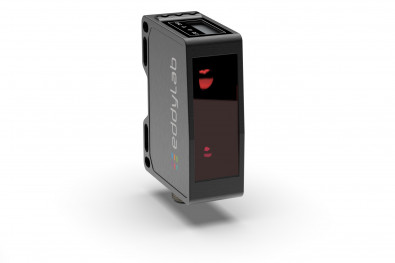

High-Performance sensors AXIS-HP

High-Performance sensors - for high-precision quality testing

Ranges	40 - 1350 mm
Resolution	0,7 - 125 µm
Linearity	± 0,06% MR... ± 0,32% MR
Output	0...10 V / 4...20 mA / RS485
Protection class	IP67
Download	Data sheet CAD-data (on request)

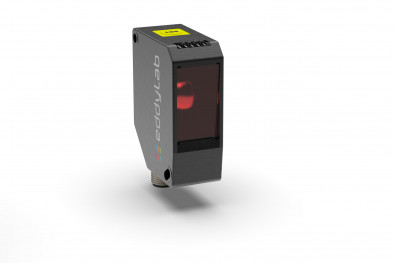

Long-Range sensors AXIS-LR

Long-Range sensors - for long measuring ranges

Ranges	3800 - 12800 mm
Resolution	± 0,11% MR... ± 0,49% MR
Linearity	± 15 mm
Output	0...10 V / 4...20 mA
Protection class	IP67
Download	Data sheet CAD-data (on request)
