Insensitive and reliable. LVDT displacement transducers from eddylab GmbH are inductive full bridges that work virtually wear-free. The differential measuring principle of our LVDTs ensures minimum temperature effects on the results of the measurements. Therefore the system is insusceptible to electromagnetic external interference.
Characterized by exceptional ruggedness. The LVDTs are characterized by their exceptional ruggedness and reliability under harsh conditions, despite their high resolution and repeat accuracy.
Even demanding operating conditions as high temperature areas (up to 200° C), high pressures (up to 400 bar) or heavy vibration loads pose no problem for the LVDT sensors.
High protection classes and high quality housing like stainless steel and titanium ensure an application under water. The LVDTs are also built to withstand contact with aggressive chemical products, which are used for cleaning and disinfection in pharmaceutical, medical and food industry applications. The pressurized hydraulic versions are designed for installation in hydraulic and pneumatic cylinders or servo valves.

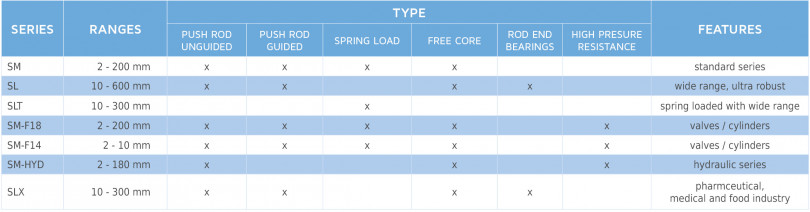

The perfect solution for all requirements. eddylab GmbH offers LVDT sensors with a measuring range from ± 1 mm (2 mm) up to ± 300 mm (600 mm). The eddylab product range comprises six different series. That ensures to have a suitable measuring system for every application.
Weitere Informationen unter www.lvdt.eu

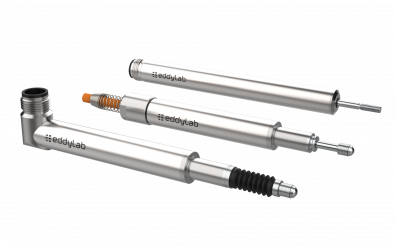

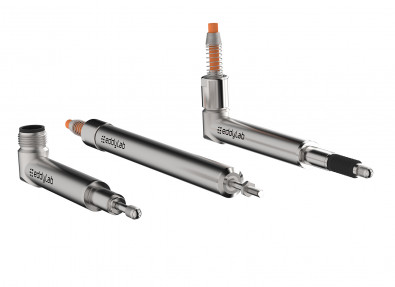

Standard series that fits nearly all industrial and laboratory applications, highly customisable
|
Ranges |
2 - 200 mm |
|
Type |
push rod guided, push rod unguided, spring loaded |
|
Linearity max. |
±0.30 %, optional ±0.20 % / ±0,1 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP67, (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, optional +150 °C / +200 °C |
|
Housing |
stainless steel |
|
Download |

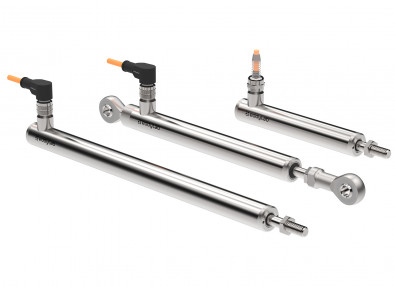

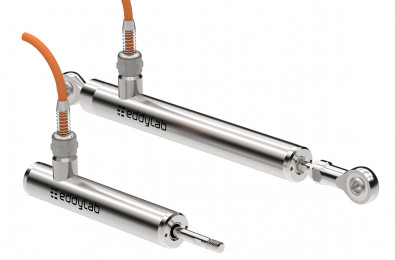

Ultra-robust construction, features a complete stainless steel housing with a diameter of 20 mm and 8 mm pushrod.
|
Range |
10 - 600 mm |
|
Type |
rod end bearings, push rod guided, push rod unguided |
|
Linearity max. |
±0.30 %, optional ±0.20 %/ ±0,1 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP67 (optional IP68) |
|
Operating temperature |
-40 °C..+120 °C, +150 °C / +200 °C |
|
Download |

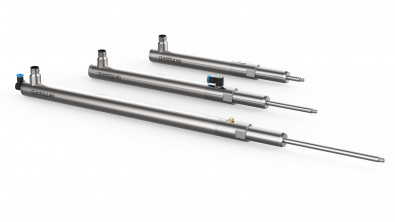

Ultra robust LVDT series with spring loaded and air actuated versions. Measurement ranges up to 300 mm.
|
Range |
10 - 300 mm |
|
Type |
spring loaded mechanism, pneumatic version PR1: pressurized air extends push rod, pneumatic version PR2: pressurized air retracts push rod |
|
Linearity max. |
±0,3 %, optional ±0,2 % / ±0,1 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP65, optional IP67 |
|
Operating temperature |
-40 °C...+120 °C, optional +150 °C / +200 °C |
|
Download |
|
Designed for integration into hydraulic and pneumatic cylinders or servo valves. Pressure resistant up to 150 bar.
|
Range |
2 - 200 mm |
|
Type |
push rod guided, push rod unguided, spring loaded |
|
Linearity max. |
±0.30 %, optional ±0.20 % / ±0,1 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP67 (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, +150 °C (only sensor) |
|
Operating pressure |
max. 150 bar |
|
Download |

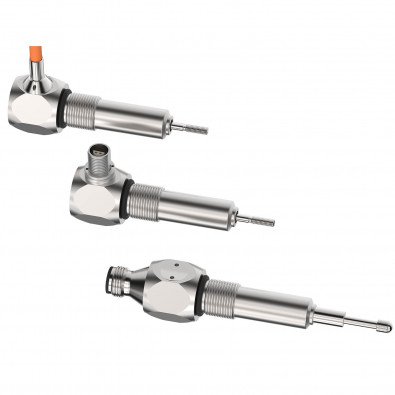

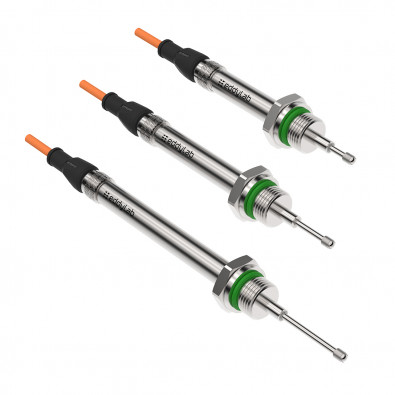

Designed for integration into hydraulic and pneumatic cylinders or servo valves. Pressure resistant up to 150 bar.
|
Range |
2-10 mm |
|
Type |
free core, push rod guided/ unguided, spring loaded |
|
Linearity max. |
±0,3 %, optional ±0,2 % / ±0,1 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP67, optional IP68 |
|
Operating temperature |
-40 °C...+120 °C, optional +200 °C |
|
Operating pressure |
max. 150 bar |
|
Download |
|

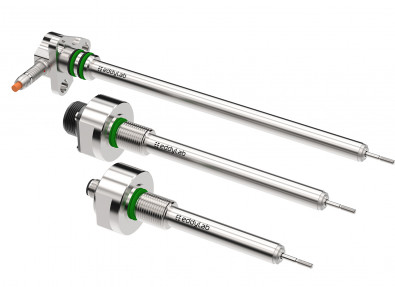

Designed for integration into hydraulic and pneumatic cylinders or servo valves. Pressure resistant up to 400 bar.
|
Ranges |
2 - 180 mm |
|
Type |
free core, push rod unguided |
|
Linearity max. |
±0.30 %, optional ±0.20 % / ±0,1 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP67 (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, +150 °C (only sensor) |
|
Operating pressure |
up to 400 bar |
|
Download |
Perfectly adapted to the environmental conditions in pharmceutical, medical and food industry applications and garantuees highest reliability and life-time.
|
Range |
10-300 mm |
|
Type |
free core, push rod guided/ unguided, rod end bearings |
|
Linearity max. |
±0,3 %, optional ±0,2 % / ±0,1 % for selected models |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Protection class |
IP68 / IP69K |
|
Operating temperature |
-40...+150 °C / +200 °C |
|
Download |
|

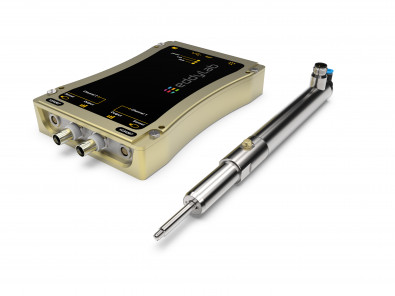

Highly accurate measurement results without linearity errors
|
Channels |
1 and 2 channel |
|
Output signals |
analog: 4...20 mA / 0...10 V; digital: USB, CAN |
|
Resolution |
16 bit |
|
Corner frequency |
selectable, up to 20 kHz |
|
Features |
eddyMOTION LVDT software, linearisation and calibration function |
|
Download |
|
The software tool eddyMOTION LVDT is a Windows-based analysis and configuration tool. In combination with the TX LVDT Digital Controller the software is used
for the visualization and documentation of mechanical movements movements.

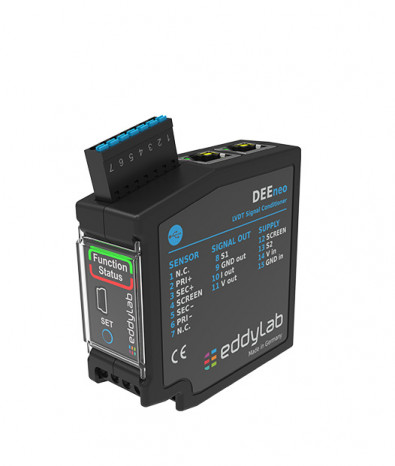

Universal signal converter for inductive LVDT sensors
|
Signal processing |
Digital by microcontroller |
|
Resolution |
16 bit |
|
Functions |
Cable break detection, Signal adjustment via SET button or software |
|
Mounting |
DIN rail mounting |
|
Max. frequency |
Digital adjustable, standard 300 Hz |
|
Linearisation of sensor |
Yes, optionally possible |
|
Download |
|

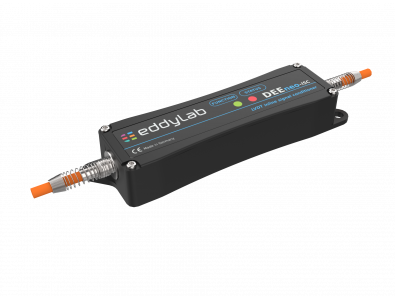

integrated in sensor cable
|
Signal processing |
Digital by microcontroller |
|
Resolution |
16 bit |
|
Functions |
Cable break detection, Signal adjustment via SET button or software |
|
Mounting |
Bore ø5,5 |
|
Max. frequency |
Digital adjustable, standard 300 Hz |
|
Linearisation of sensor |
Yes, optionally possible |
|
Download |
|

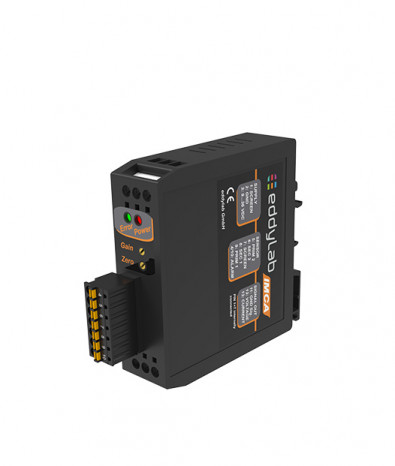

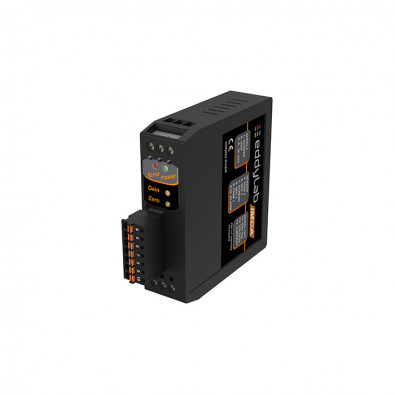

for switch cabinet installation
|
Output |
0…10 V, 0…5 V, ±5 V, ±10 V, 4…20 mA, 0…20 mA |
|
Function |
Cable break detection, alarm-output |
|
Adjustable setting |
offset, gain, frequency, amplitude, phase shift |
|
Max. frequency |
300 Hz/ optionally 1kHz |
|
Mounting |
DIN EN-rail |
|
Download |
|

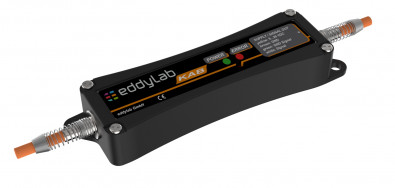

Integrated in sensor cable
|
Output |
0…10 V, 0…5 V, ±5 V, ±10 V, 4…20 mA, 0…20 mA |
|
Function |
Cable break detection |
|
Adjustable setting |
Offset, gain, frequency, amplitude, phase shift |
|
Max. frequency |
300 Hz |
|
Mounting |
Hole ø5,5 |
|
Download |
|
