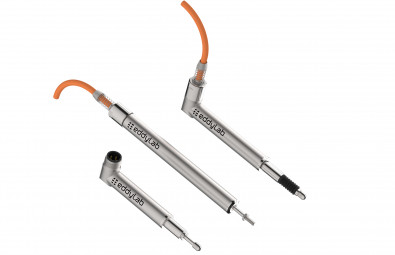

LVDT displacement transducers from eddylab GmbH are inductive full bridges that work virtually wear-free. The mechanical design is available either as a push rod or a spring button. Our LVDTs are characterized by their exceptional ruggedness, despite their high resolution and repeat accuracy. The LVDTs master even demanding operating conditions, such as measuring in the high temperature range (up to 200° C) or at high pressures (up to 400 bar) without difficulty.
|
Range |
25 - 600 mm |
|
Construction |
rod end bearings, push rod guided, push rod unguided |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67 (optional IP68) |
|
Operating temeprature |
-40 °C..+120 °C, +150 °C (only sensor) |
|
Download |
|
|
Ranges |
2 - 200 mm |
|
Construction |
push rod guided, push rod unguided, spring loaded |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67, (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, optional +150 °C (only sensor) |
|
Download |
|
|
Ranges |
2 - 180 mm |
|
Construction |
push rod guided |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67 (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, +150 °C (only sensor) |
|
Operating pressure |
up to 400 bar |
|
Download |
|
|
Range |
2 - 200 mm |
|
Construction |
spring loaded, threaded flange M18 x 1,5 mm |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67 (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, +150 °C (only sensor) |
|
Operating pressure |
|
|
Download |
|
|
Range |
25 - 600 mm |
|
Construction |
rod end bearings, push rod guided, push rod unguided |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67 (optional IP68) |
|
Operating temeprature |
-40 °C..+120 °C, +150 °C (only sensor) |
|
Download |
|
|
Range |
2 - 200 mm |
|
Construction |
spring loaded, threaded flange M18 x 1,5 mm |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67 (optional IP68) |
|
Operating temperature |
-40 °C...+120 °C, +150 °C (only sensor) |
|
Operating pressure |
|
|
Download |
|
|
Range |
25 - 600 mm |
|
Construction |
rod end bearings, push rod guided, push rod unguided |
|
Linearity max. |
±0.30 %, optional ±0.20 % |
|
Output analogue |
AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA |
|
Voltage rate |
24 V (9...36 VDC) |
|
Protection class |
IP67 (optional IP68) |
|
Operating temeprature |
-40 °C..+120 °C, +150 °C (only sensor) |
|
Download |
|
