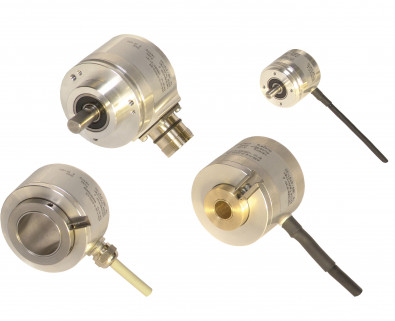

This sensor class measures angle changes in rotating parts with high precision. The measuring method of the digital encoder is based on periodic tick marks, which are available incrementally as TTL, HTL, or absolutely in the form of bus interfaces (Profibus, SSI, CANopen, Profinet ..). Analogue angle sensors, however, convert the angle change that is to be detected into an absolute signal by means of a potentiometer.
|
Output |
TTL, HTL, A/A*, B/B*, Z/Z* |
|
Diameter housing |
36 mm, 58 mm |
|
Protection class |
up to IP67 |
|
Shaft |
solid shaft, hollow shaft, through hollow shaft |
|
