SR

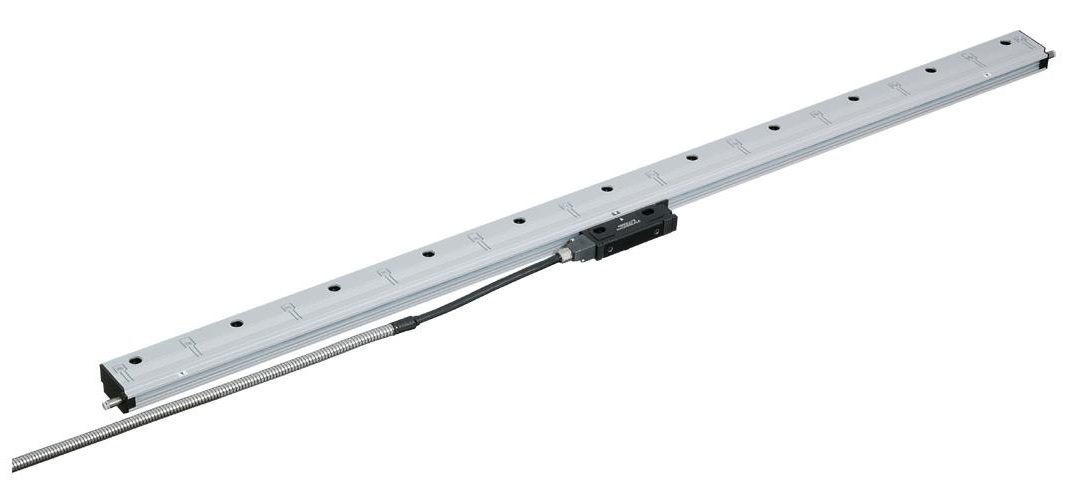

SR87 Series
Scale
Cable
CNC control unit
Resolution:
0,01 μm / 0,05 μm / 0,1 μm / 0,5 μm / 1,0 μm
Measuring length:
140,0 mm - 3.040,0 mm
Accuracy:
(3+3ML/1.000) μm p-p or (5+5ML/1.000) μm p-p
Output signal:
Absolute serial bidirectional signal, compliant with EIA-485
Protection class:
IP54 (Air purge not included), IP65 (Air purge included)
Cable length:
3 m; 5 m; 10 m; 15 m
Protocol:
FANUC; Mitsubishi; Matsushita; Yaskawa
Discontinued:
Advice:
ML
Resolution
Accuracy
SR77
-014
140
0,01 μm /
0,05 μm /
0,1 μm /
0,5 μm /
1,0 μm
(3+3ML/1.000) μm p-p
or
(5+5ML/1.000) μm p-p
-024
240
-034
340
-044
440
-054
540
-064
640
-074
740
-084
840
-094
940
-104
1.040
-114
1.140
-124
1.240
-134
1.340
-144
1.440
-154
1.540
-164
1.640
-174
1.740
-184
1.840
-204
2.040
-224
2.240
-244
2.440
-264
2.640
-284
2.840
-304
3.040
Product code
Type
Description
97950463
CH33-01NP
cable (1 m); PVC; open end
97948399
CH33-02NP
cable (2 m); PVC; open end
97950280
CH33-03NP
cable (3 m); PVC; open end
97950369
CH33-05NP
cable (5 m); PVC; open end
97950481
CH33-10NP
cable (10 m); PVC; open end
97950529
CH33-15NP
cable (15 m); PVC; open end
97950627
CH33-03NE
cable (3 m); PU; open end
97950461
CH33-05NE
cable (5 m); PU; open end
97950798
CH33-10NE
cable (10 m); PU; open end
97948811
CH33-03NPF
cable (3 m); PVC; with Fanuc connector
97948317
CH33-05NPF
cable (5 m); PVC; with Fanuc connector
97948437
CH33-10NPF
cable (10 m); PVC; with Fanuc connector
97948636
CH33-12NPF
cable (12 m); PVC; with Fanuc connector
97948439
CH33-18NPF
cable (18 m); PVC; with Fanuc connector
97948958
CH33-24NPF
cable (24 m); PVC; with Fanuc connector
97948368
CH33-03NEF
cable (3 m); PU; with Fanuc connector
97948366
CH33-05NEF
cable (5 m); PU; with Fanuc connector
97949275
CH33-06NEF
cable (6 m); PU; with Fanuc connector
97949276
CH33-09NEF
cable (9 m); PU; with Fanuc connector
97948334
CH33-10NEF
cable (10 m); PU; with Fanuc connector
97948246
CH33-15NEF
cable (15 m); PU; with Fanuc connector
97948291
CH33-05NPG
cable (5 m); PVC; with Panasonic / Yaskawa connector
97948533
CH33-03NPK
cable (3 m); PVC; Scale side with coupling connector
97948655
CH33-06NPK
cable (6 m); PVC; Scale side with coupling connector
97948475
CH33-09NPK
cable (9 m); PVC; Scale side with coupling connector
97948656
CH33-15NPK
cable (15 m); PVC; Scale side with coupling connector
97948478
CH33-06NPQA
cable (6 m); PVC; Fanuc controller side with coupling connector
97948657
CH33-09NPQA
cable (9 m); PVC; Fanuc controller side with coupling connector
97948611
CH33-12NPMA
cable (12 m); PVC; Mitsubishi controller side with coupling connector
