SR

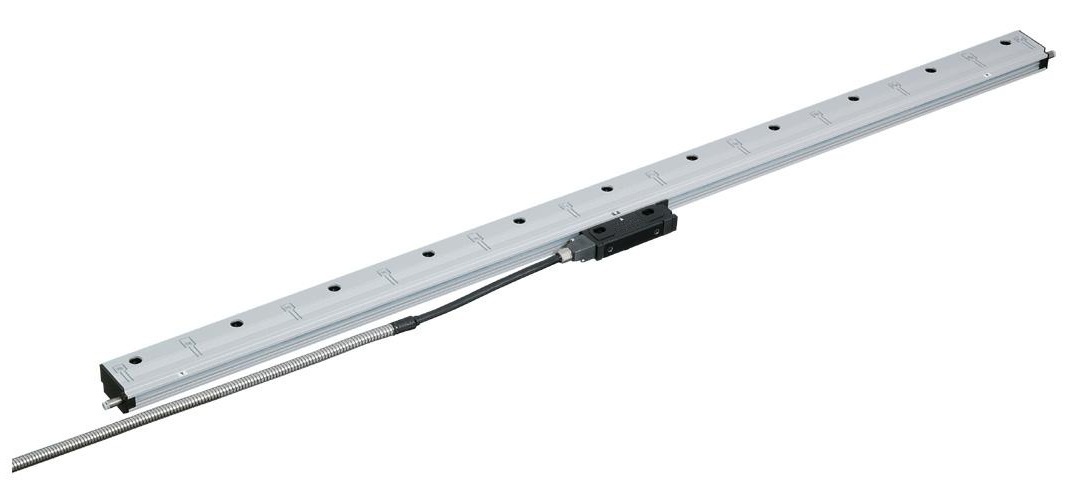

SR84 Series

Data sheet

Drawing

Manual SR84 Installation

Manual SR84 Operation EN

Manual SR84 Operation DE

Manual SR84 Supplement

Keitoku

Resolution:

0,05 μm / 0,1 μm / 0,5 μm / 1,0 μm

Measuring length:

140,0 mm - 3.040,0 mm

Accuracy:

(3+3ML/1.000) μm p-p or (5+5ML/1.000) μm p-p

Output signal:

Incremental serial bidirectional signal, compliant with EIA-485

Protection class:

IP54 (Air purge not included), IP65 (Air purge included)

Cable length:

3 m; 5 m; 10 m; 15 m

Protocol:

Mitsubishi

Discontinued:



Advice:



Scale

Cable

Adaptor

Counter / Interface
CH33
SR84 LH70/71
LY71
LY72
LG20
LH71A-3T01
CK-T157 LT30
MG10/20/30
open end





ML

Resolution

Accuracy

SR84

-014

140

0,05 μm /

0,1 μm /

0,5 μm /

1,0 μm

(3+3ML/1.000) μm p-p

or

(5+5ML/1.000) μm p-p

-024

240

-034

340

-044

440

-054

540

-064

640

-074

740

-084

840

-094

940

-104

1.040

-114

1.140

-124

1.240

-134

1.340

-144

1.440

-154

1.540

-164

1.640

-174

1.740

-184

1.840

-204

2.040

-224

2.240

-244

2.440

-264

2.640

-284

2.840

-304

3.040

Product code

Type

Cable PVC with armor; Sub-D 9P

97950946

CH33-03CPD

Cable (3 m)

97950956

CH33-05CPD

Cable (5 m)

97950957

CH33-10CPD

Cable (10 m)

97950958

CH33-15CPD

Cable (15 m)

Product code

Type

Cable PU with armor; Sub-D 9P

97950959

CH33-03CED

Cable (3 m)

97950960

CH33-05CED

Cable (5 m)

97950961

CH33-10CED

Cable (10 m)

97950962

CH33-15CED

Cable (15 m)

Product code

Type

Cable PVC with open end

97950280

CH33-03NP

Cable (3 m)

97950365

CH33-05NP

Cable (5 m)

97950754

CH33-10NP

Cable (10 m)

97950529

CH33-15NP

Cable (15 m)

Product code

Type

Cable PU with open end

97950627

CH33-03NE

Cable (3 m)

97950461

CH33-05NE

Cable (5 m)

97950798

CH33-10NE

Cable (10 m)

PVC = polyvinyl chloride

PU = polyurethane
