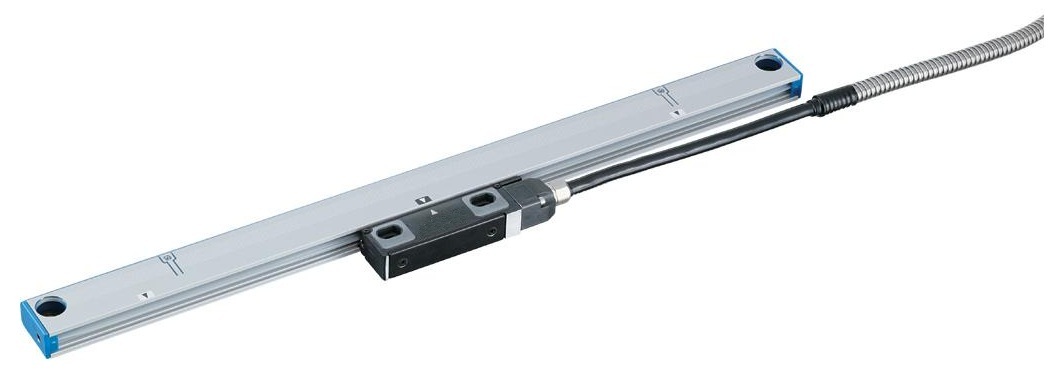

SR74

Resolution:	0,05 μm / 0,1 μm / 0,5 μm / 1,0 μm
Measuring length:	70,0 mm - 2.040,0 mm
Accuracy:	(3+3ML/1.000) μm p-p or (5+5ML/1.000) μm p-p
Output signal:	A/B, Reference point line driver signal, compliant with EIA-422
Protection class:	IP54 (Air purge not included), IP65 (Air purge included)
Cable length:	3 m; 5 m; 10 m; 15 m
Discontinued:
Advice:

		ML	Resolution	Accuracy
SR74	-007	70	0,05 μm / 0,1 μm / 0,5 μm / 1,0 μm	(3+3ML/1.000) μm p-p or (5+5ML/1.000) μm p-p
	-012	120
	-017	170
	-022	220
	-027	270
	-032	320
	-037	370
	-042	420
	-047	470
	-052	520
	-057	570
	-062	620
	-072	720
	-077	770
	-082	820
	-092	920
	-102	1.020
	-114	1.140
	-124	1.240
	-134	1.340
	-144	1.440
	-154	1.540
	-164	1.640
	-174	1.740
	-184	1.840
	-204	2.040

Product code	Type	Cable PVC with armor; Sub-D 9P
97950946	CH33-03CPD	Cable (3 m)
97950956	CH33-05CPD	Cable (5 m)
97950957	CH33-10CPD	Cable (10 m)
97950958	CH33-15CPD	Cable (15 m)

Product code	Type	Cable PU with armor; Sub-D 9P
97950959	CH33-03CED	Cable (3 m)
97950960	CH33-05CED	Cable (5 m)
97950961	CH33-10CED	Cable (10 m)
97950962	CH33-15CED	Cable (15 m)

Product code	Type	Cable PVC with open end
97950280	CH33-03NP	Cable (3 m)
97950365	CH33-05NP	Cable (5 m)
97950754	CH33-10NP	Cable (10 m)
97950529	CH33-15NP	Cable (15 m)

Product code	Type	Cable PU with open end
97950627	CH33-03NE	Cable (3 m)
97950461	CH33-05NE	Cable (5 m)
97950798	CH33-10NE	Cable (10 m)

PVC = polyvinyl chloride

PU = polyurethane
