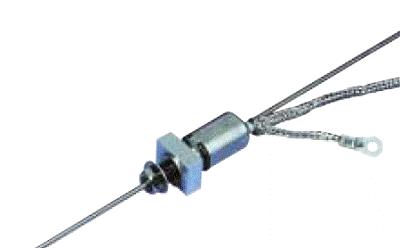

SR721-SP Series

Data sheet

Drawing

Manual SR721-SP

Resolution:

0,5 μm; 1,0 μm; 2,0 μm; 5,0 μm; 10,0 μm

Measuring length:

150 mm; 200 mm; 250 mm; 350 mm; 400 mm

Accuracy:

+/- 5 μm

Cable length:

3 m; 5 m; 10 m; 15 m

Discontinued:



Advice:

 On the reading head is stamped: MSH-706

Scale & Reading Head

Cable

Adaptor

Counter / Interface
SZ70-1
HK9006-LW** SZ51-MS01
SR721SP LH70/71
LY71

Scale

Reading Head
LY72
MSS975R**
HA-721SP**
LG20
LH71A-3T01
SZ51-MS01
LH51/52
LH54-3
LH61
LG10
LY51
LY52
HK9006-LS**
MD10A
MD20B

Product code

Type

Measuring length

97910325

SR721SP-50

SR721SP-50MM (75:50:75) (1 m cable)

97931968

SR721SP-50T01

SR721SP-50T01 (10 m open end cable)

97910327

SR721SP-150

SR721SP-150MM (75:150:75) (1 m cable)

97910328

SR721SP-200

SR721SP-200MM (75:200:75) (1 m cable)

97930635

SR721SP-200T01

SR721SP-200T01 (75:200:75)

97910329

SR721SP-250

SR721SP-250MM (75:250:75) (1 m cable)

97910330

SR721SP-300

SR721SP-300MM (75:300:75) (1 m cable)

97910331

SR721SP-350

SR721SP-350MM (75:350:75) (1 m cable)

97910332

SR721SP-400

SR721SP-400MM (75:400:75) (1 m cable)

97938220

SR721SP-500T01

SR721SP-500T01 (ML 500 mm) (1 m cable)

97923775

SR721SP-8001

SR721SP-8001 (75:250:75) (5,5 m cable)

97990294

HK9006-LS03C

(3 m) with Hirose; 8P / SUB-D15

97990296

HK9006-LS10C

(10 m) with Hirose; 8P / SUB-D15

97990112

HK9006-LW03C

(3 m) with Hirose; 8P / HA-31A

97991247

HK9006-LW03N

(3 m) with Hirose; 8P / HA-31A

97923744

HA721SP-901

Reading head with 5,5 m blank shield / protection cable

97924553

HA721SP-902

Reading head with 3 m thin type cable

97924671

HA721SP-903

Reading head with 3 m bigger dimension cable

97930933

HA721SP-T03

Reading head with 10 m bigger dimension cable

97930908

HA721SP-T05

Reading head with 10 m blank shield / protection cable

97931726

HA721SP-T06

Reading head with 1 m blank shield / protection cable

97950865

MSS975R-0150L02

MSS975R-150MM (75-150Y-75)

97950871

MSS975R-0200L01

MSS975R-200MM (30-200Y-30)

97950872

MSS975R-0200L02

MSS975R-200MM (75-200Y-75)

97950938

MSS975R-0250L01

MSS975R-250MM (75-250Y-75)

97947761

MSS975R-0250L02

MSS975R-250MM (30-250Y-30)

97950874

MSS975R-0300L02

MSS975R-300MM (75-300Y-75)

97950869

MSS975R-0350L03

MSS975R-350MM (30-350Y-30)

97950870

MSS975R-0350L04

MSS975R-350MM (75-350Y-75)

97950875

MSS975R-0400L01

MSS975R-400MM (30-400Y-30)

97950876

MSS975R-0400L02

MSS975R-400MM (75-400Y-75)

97950860

MSS975R-0450L01

MSS975R-450MM (30-450Y-30)

97950861

MSS975R-0450L02

MSS975R-450MM (75-450Y-75)

97948063

MSS975R-0500L04

MSS975R-500MM (30-500Y-30)

97950877

MSS975R-0600L01

MSS975R-600MM (30-600Y-30)

97950878

MSS975R-0600L02

MSS975R-600MM (75-600Y-75)

97950867

MSS975R-0650L02

MSS975R-650MM (75-650Y-75)

97950863

MSS975R-0750L02

MSS975R-750MM (75-750Y-75)

97947663

MSS975R-0850L01

MSS975R-850MM (SR10)

97947526

MSS975R-0950L01

MSS975R-950MM (30-950Y-30)

97947554

MSS975R-0950L02

MSS975R-950MM (75-950Y-75)

97947724

MSS975R-2050L01

MSS975R-2050MM (30-2050Y-30)
