SR

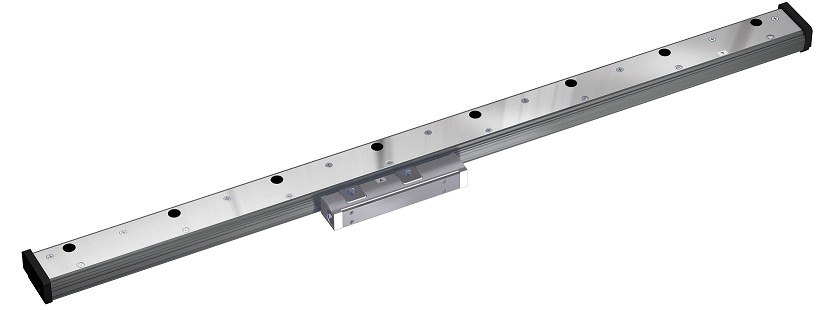

SR67A Series
Scale
Cable
CNC control unit
Resolution:
0,01 μm
Measuring length:
140,0 mm - 3.640,0 mm
Accuracy:
(3+3ML/1.000) μm p-p or (5+5ML/1.000) μm p-p
Output signal:
Absolute serial bidirectional signal
Protection class:
IP54 (Air purge not included), IP65 (Air purge included)
Cable length:
up to 30 m
Protocol:
Fanuc, Mitsubishi, Siemens
Discontinued:
Advice:
ML
Resolution
Accuracy
SR67A
-014
140
0,01 μm /
0,05 μm /
0,1 μm /
0,5 μm /
1,0 μm
for
Siemens
DRIVE-CliQ
(3+3ML/1.000) μm p-p
or
(5+5ML/1.000) μm p-p
-024
240
-034
340
-044
440
-054
540
-064
640
-074
740
-084
840
-094
940
-104
1.040
-114
1.140
-124
1.240
-134
1.340
-144
1.440
-154
1.540
-164
1.640
-174
1.740
-184
1.840
-204
2.040
-224
2.240
-244
2.440
-264
2.640
-284
2.840
-304
3.040
-324
3.240
-344
3.440
-364
3.640
CH22-***○□△#:
○:
Conduit specification:
C: with conduit
N: without conduit
□:
Cable specification:
S: SIEMENS motion Connect 800Plus (green)
△:
Scale side connector:
E: M12 connector (female) with panel mount relay made by Phoenix Contact
F: M12 connector (male) made by Phoenix Contact
M: Scale head connector
#:
Control side connector:
Y: RJ45 connector mady by Yamaichi Electric
Z: RJ45 connector (water-proof) made by Yamaichi Electric
CH23-***○□△#:
C: including conduit
N: not including conduit
E: Polyurethane Ø8 made by Yoshinogawa Electric Wire & Cable
P: PVC Ø8 made by Hirakawa Hewtech
V: PVC Ø6.8 made by Hirakawa Hewtech
Terminal B specification:
None: Unterminated end
F: 20P made by Honda Tsushin Kogyo
J: 20P made by Hirose Electric
K: 10P JN1 (male) made by Japan Aviation Electronics Industry
M: 10P made by Sumitomo 3M
N: 12P R04 (male) made by Tajimi Electronics
Terminal A specification:
None: Original of Magnescale
A: 10P JN2 (female) made by Japan Aviation Electronics Industry
C: 12P R04-9125J12F8.5 (flange, female) made by Tajimi Electronics
