SR

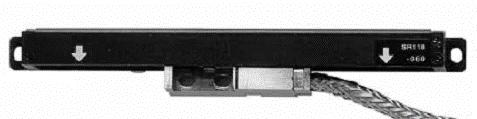

SR118 Series
Resolution:
0,5 μm
Measuring length:
15 mm - 260 mm
Accuracy:
ML 15 - 60 mm: +/- 2 μm; ML 100 - 160 mm: +/- 2,5 μm; ML 210 - 260 mm: +/- 3 μm
Protection class:
IP44
Cable length:
300 mm
Discontinued:
Advice:
Scale
Cable
Adaptor
Counter / Interface
Product code
Type
Description
97965501
SR118-015
Scale (15 mm)
97931110
SR118-015T02
97965502
SR118-030
Scale (30 mm)
97965503
SR118-060
Scale (60 mm)
97965504
SR118-100
Scale (100 mm)
97965505
SR118-130
Scale (130 mm)
97965506
SR118-160
Scale (160 mm)
97965507
SR118-210
Scale (210 mm)
97965508
SR118-260
Scale (260 mm)
97952301
CE05-3C
Adaptor cable with Hirose (1 m)
97952302
CE05-5C
Adaptor cable with Hirose (5 m)
97921085
AK2-10C
Adaptor cable with Hirose (10 m)
97991267
AK2-LA03N
Adaptor cable with Hirose (3 m)
97968601
CH02-01
Adapter cable (1 m)
97968602
CH02-03
Adapter cable (3 m)
97968603
CH02-05
Adapter cable (5 m)
97967301
SZ51-MS01
Adaptor for CE05-XX / CE07-XX / CH01-LWXX
97928115
SZ70-1
Adaptor for old scale GB, PL20B, DG-B
