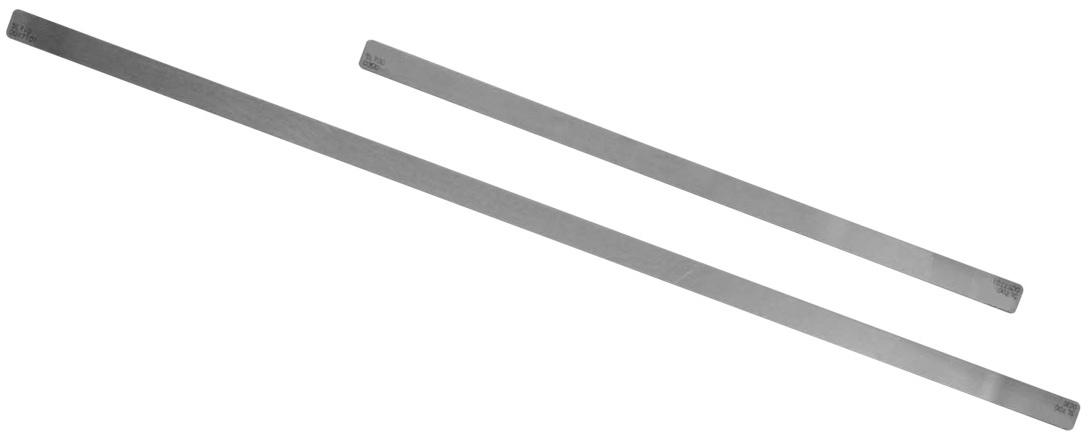

SL700 Series

Data sheet SL700

Data sheet PL101

Drawing SL700

Drawing PL101

Manual SL700

Manual PL101

Techical Info SL730

Keitoku

Length:

Measuding length + 40 mm

Measuring length:

50 mm - 100.000 mm

Accuracy:

up to +/- 10 L μm (for details please check Data sheet)

Output signal:

1 Vp-p / TTL / Mitsubishi / Yaskawa / Panasonic

Reading Head:

PL101

Discontinued:



Advice:



Scale

Reading Head

Cable

Interpolator

Output signal
SL700 PL101 CE08-** MJ632 A/B quadrature
CK-T**
MJ832 Mitsubishi
MJ842 Yaskawa
MJ852 Panasonic

Scale

Reading Head

Cable

Interpolator

Output signal
SL700 PL101 CE08-** MJ500/600/700 A/B quadrature
CK-T**
MJ620
MJ820/821 Fanuc CNCi
MJ830/831 Mitsubishi MR-J2
1 Vp-p

Type

Measuring length

SL710/720/730-0005C

ML: 50 mm

SL710/720/730-0010C

ML: 100 mm

SL710/720/730-0015C

ML: 150 mm

SL710/720/730-0020C

ML: 200 mm

SL710/720/730-0025C

ML: 250 mm

SL710/720/730-0030C

ML: 300 mm

SL710/720/730-0035C

ML: 350 mm

SL710/720/730-0040C

ML: 400 mm

SL710/720/730-0045C

ML: 450 mm

SL710/720/730-0050C

ML: 500 mm

SL710/720/730-0055C

ML: 550 mm

SL710/720/730-0060C

ML: 600 mm

SL710/720/730-0065C

ML: 650 mm

SL710/720/730-0070C

ML: 700 mm

SL710/720/730-0075C

ML: 750 mm

SL710/720/730-0080C

ML: 800 mm

SL710/720/730-0085C

ML: 850 mm

SL710/720/730-0090C

ML: 900 mm

SL710/720/730-0095C

ML: 950 mm

SL710/720/730-0100C

ML: 100 cm

SL710/720/730-0110C

ML: 110 cm

SL710/720/730-0120C

ML: 120 cm

SL710/720/730-0130C

ML: 130 cm

SL710/720/730-0140C

ML: 140 cm

SL710/720/730-0150C

ML: 150 cm

SL710/720/730-0160C

ML: 160 cm

SL710/720/730-0170C

ML: 170 cm

SL710/720/730-0180C

ML: 180 cm

SL710/720/730-0190C

ML: 190 cm

SL710/720/730-0200C

ML: 200 cm

SL710/720/730-0210C

ML: 210 cm

SL710/720/730-0220C

ML: 220 cm

SL710/720/730-0230C

ML: 230 cm

SL710/720/730-0240C

ML: 240 cm

SL710/720/730-0250C

ML: 250 cm

SL710/720/730-0260C

ML: 260 cm

SL710/720/730-0270C

ML: 270 cm

SL710/720/730-0280C

ML: 280 cm

SL710/720/730-0290C

ML: 290 cm

SL710/720/730-0300C

ML: 300 cm

SL710/720/730-0350C

ML: 350 cm

SL710/720/730-0400C

ML: 400 cm

SL710/720/730-0450C

ML: 450 cm

SL710/720/730-0500C

ML: 500 cm

SL710/720/730-0600C

ML: 600 cm

SL710/720/730-0700C

ML: 700 cm

SL710/720/730-0800C

ML: 800 cm

SL710/720/730-0900C

ML: 900 cm

SL710/720/730-1000C

ML: 10 m

SL710/720/730-10000C

ML: 100 m

Product code

Reading Head PL101 for Scale SL700 - Series; Outputsignal 1 Vp-p

97977485

PL101-N

no Ref. mark detection; IP50; 0.3 m cable

97977489

PL101-R

with Ref. mark detection; IP50; 0,3 m cable

97977488

PL101-RH

with Ref. mark detection; IP67; 3 m cable

Product code

Extension cables for Reading Head PL101 - Series

97924996

CK-T12

cable (1 m)

97924997

CK-T13

cable (3 m)

97924998

CK-T14

cable (5 m)

97924999

CK-T15

cable (10 m)

97930000

CK-T16

cable (15 m)

97931237

CK-T90

cable (25 m) with open end

97958805

CE08-01

cable (1 m)

97958801

CE08-03

cable (3 m)

97958802

CE08-05

cable (5 m)

97958803

CE08-10

cable (10 m)

97958804

CE08-15

cable (15 m)

Product code

Accessories for PL101 - Reading Heads & SL7xx - Series

97977504

SZ16

Wiper (PL100/101 - Series)

97977503

SZ17

Spacer Kit for PL100/101 - Series

97977501

SZ18

Mount. Plate for PL100/101-N,R - Series

97977505

SZ19

Mount. Plate for PL101/101-RH - Series
