MF

MF10 Series

Data sheet

Drawing MF10-CM

Drawing MF10-P1/P2

Manual MF10-CM

Manual MF10-P1/P2

Manual MF10-P1/P2 Correction

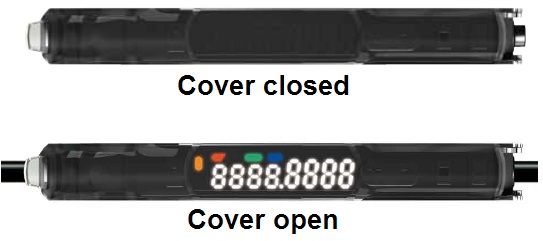

Display

Adapter / Interpolator

Gauge
MF10 DF-Series
CE34
DT-Series
MT20

Min. display unit:

0,1 μm

Comparator function:

GO / NO GO function

Discontinued:



Advice:



Product code

Type

Description

97929923

MF10-P1

Display (NPN output)

97929924

MF10-P2

Display (PNP output)

97929989

MF10-CM

Display (for MG50)

Product code

Type

Description

97929925

CE34-005

Cable (0.5 m)

97929926

CE34-02

Cable (2 m)

97929927

CE34-05

Cable (5 m)

97929928

CE34-10

Cable (10 m)

97929929

CE34-15

Cable (15 m)

97929930

CE34-20

Cable (20 m)

Product code

Type

Description

97929990

MT20-01

Interpolator for DT512 series

97929991

MT20-05

Interpolator for DT12/32 series

Product code





ML

Resolution

Accuracy

max. response speed

Model

97929915

DF805

SR

5 mm

0,1 μm

1 μm

80 m/min

Straight

97929916

SLR

Right angle

97929917

SFR

Flange / Straight

97929918

SFLR

Flange / Right angle

97929919

DF812

SR

12 mm

0,1 μm

1 μm

80 m/min

Straight

97929920

SLR

Right angle

97929921

SFR

Flange / Straight

97929922

SFLR

Flange / Right angle
